water chilled high wall fan coil unit in 2 tubes

Product Categories

Ningbo Dekon New Energy Co., Ltd

Contact Now

Name: water chilled high wall fan coil unit in 2 tubes
Brand: DEKON or OEM
Price: 1 USD

Place of Origin : made in china

Brand Name : DEKON or OEM

Certification : CE, ISO,AHRI

Model Number : FP-136BM

MOQ : TBC

Delivery Time : 25-35days since deposit date

Payment Terms : TT,LC

Packaging Details : Standare Export packing

Price : TBC

Contact Now

water chilled high wall fan coil unit in 2 tubes

model(2 tube system)				FP-34BM	FP-51BM	FP-102BM	FP-136BM
power supply				220V,50Hz,1Ph
air volume		H	m³/h	340	510	1020	1360
		M		280	380	765	1010
		L		180	260	530	710
static pressure			Pa	0	0	0	0
cooling capacity	TH	H	W	1800	2700	5400	7200
	TH		BTU/h	6142	9212	18425	24566
	SH		W	1350	2025	4050	5400
	SH		BTU/h	4606	6909	13819	18424
	TH	M	W	1476	2214	4428	5904
	TH	M	W	978	1399	3044	3926
	SH	L	W	1098	1647	3294	4392
	SH	L	W	649	960	2060	2710
heating capacity	H		W	2700	4050	8100	10800
	M		W	2146	3219	6439	8586
	L		W	1512	2268	4536	6048
noise	H	0Pa	dB(A)	37	39	45	46
power input	H	0Pa	W	30	38	90	100
waterflow volume			m³/h	0.31	0.46	0.93	0.93
water pressure dropping			kPa	12	14	22.5	23.5
dimension of water(in & out)connection pipe			in	ZG1/2"	ZG1/2"	ZG1/2"	ZG1/2"
dimension of water(in & out)connection pipe			out	ZG1/2"	ZG1/2"	ZG1/2"	ZG1/2"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
The maximum pressure			MPa	1.6	1.6	1.6	1.6
dimension of water drain pipe			mm	￠16	￠16	￠16	￠16
unit dimennsion	L×W×H		mm	795285215	795285215	1090＊330＊255	1090＊330＊255
unit weight			kg	11.2	11.2	16.5	16.5

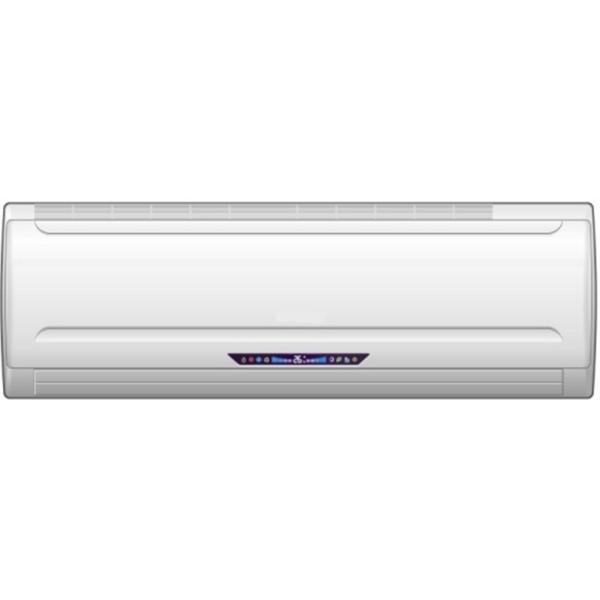

water chilled high wall fan coil unit in 2 tubes Images
